Compatible with your mixed PC environment
Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-C™- and Thunderbolt™-enabled notebooks.
Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-C™- and Thunderbolt™-enabled notebooks.

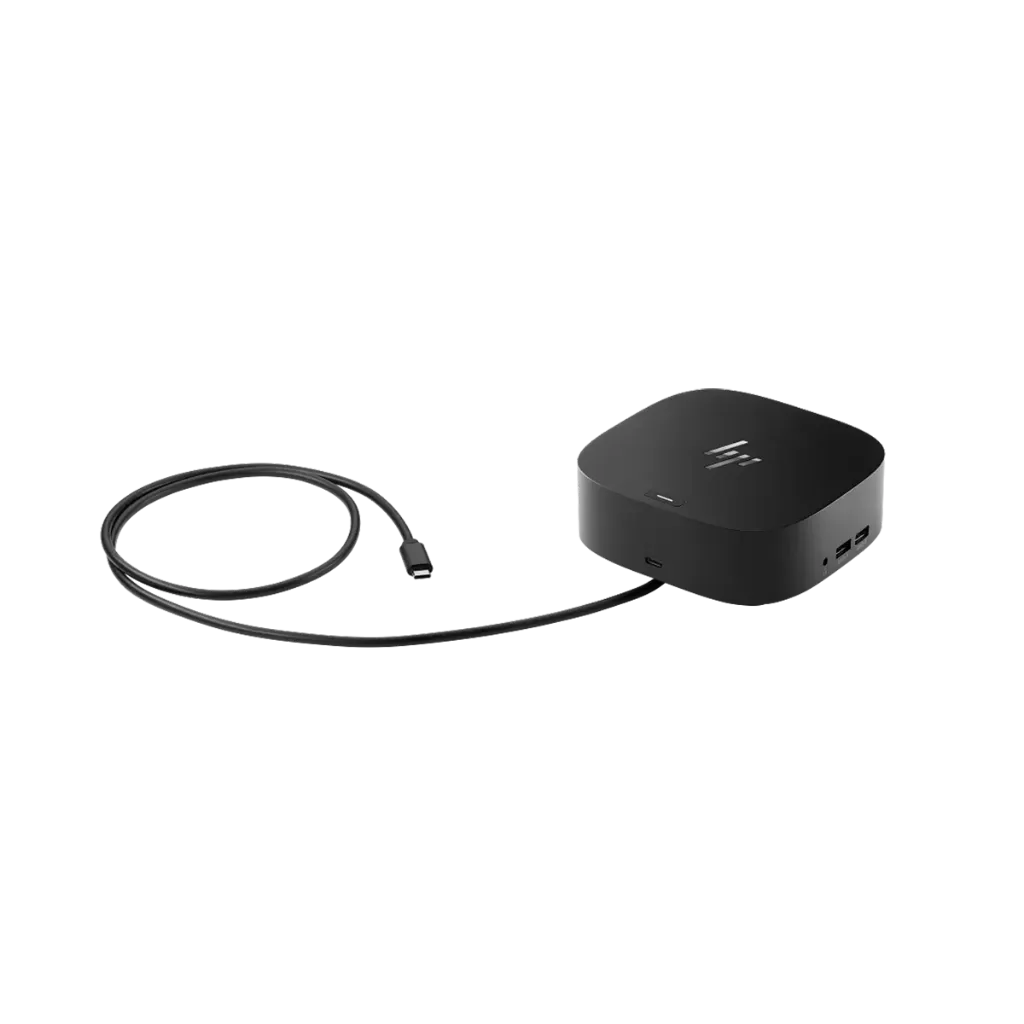

Single-cable solution
Add your accessories and up to three displays3 to the dock. Then simply connect it to your notebook1 through a single USB-CTM cable to access your devices and charge your PC.
Add your accessories and up to three displays3 to the dock. Then simply connect it to your notebook1 through a single USB-CTM cable to access your devices and charge your PC.
Easily manage your commercial
HP fleet Help IT secure and remotely manage your deployed commercial HP notebooks1 and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.
HP fleet Help IT secure and remotely manage your deployed commercial HP notebooks1 and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.
Small footprint
Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.
Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.
Electronic asset management for your docks
Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool
Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool
Efficient firmware updates
Updating your dock fleet has never been easier. IT can save time by pushing dock firmware updates to managed notebooks for later installation on the dock, even when they’re disconnected from each other
Specifications
Part number | 5TW10AA/5TW10UT/5TW10ET |
Dimensions (L x W x H) | 4.80 x 4.80 x 1.77 in (122 x 122 x 45 mm) |
Weight | 0.68 kg |
Top components | Mechanical power button with LED indicator to power or wake host system |

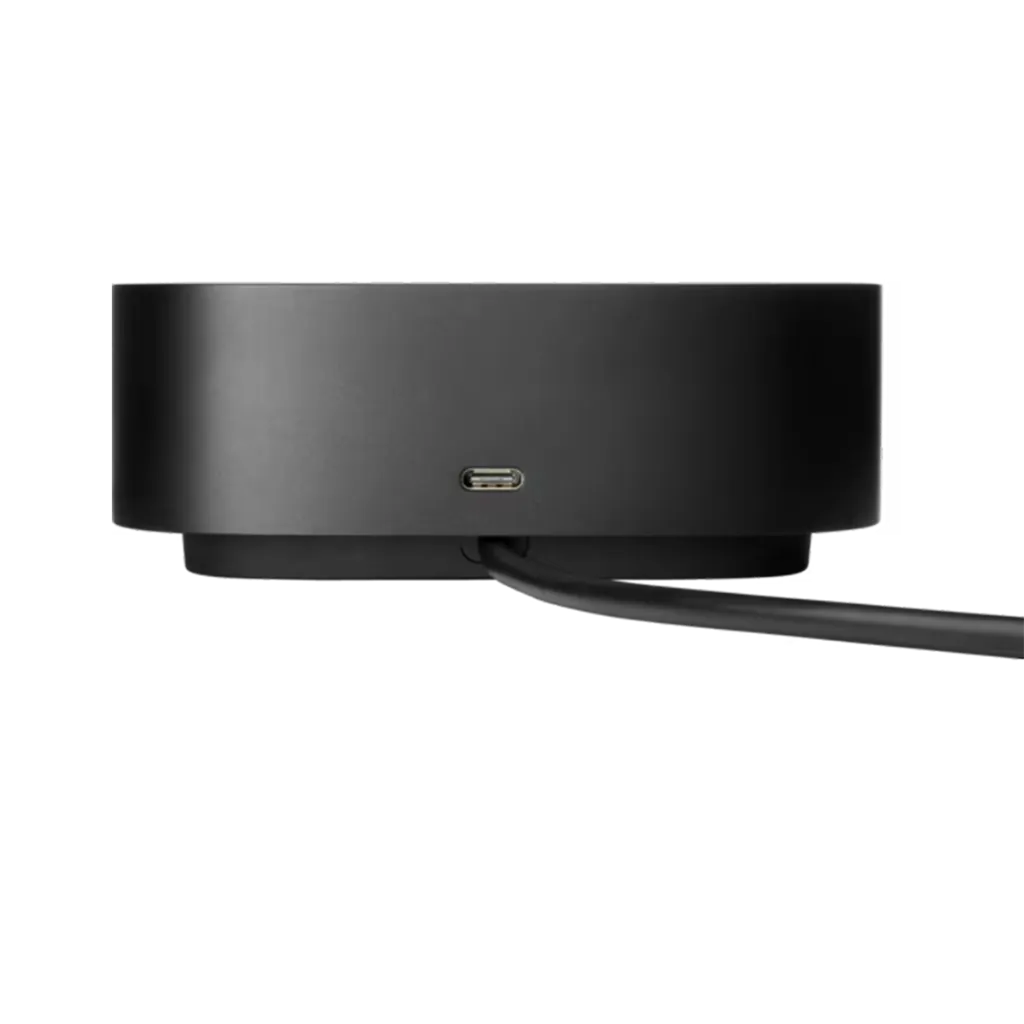

Front components | 1 x USB-C® 3.2 Gen 1 port with data and power out (15W) 1 x USB-C® cable to connect to host system (1 meter cable length) |
Side components | 2 x USB-A 3.2 Gen 1 charging ports 1 x Combo audio jack |
Back components | 2 x USB-A 3.2 Gen 1 charging ports 2 x DisplayPortTM 1.4 ports 1 x RJ45 port (10/100/1000) 1 x HDMI 2.0 port 1 x Standard lock slot |
External monitor support | For hosts that support DisplayPort 1.4 with Display Stream Compression: 3x FHD @ 60 Hz 3x QHD @ 60 Hz 3x 4k @ 60 Hz For hosts that support DisplayPort 1.3/1.4: 3x FHD @ 60 Hz 3x QHD @ 60 Hz 2x 4K @ 60 Hz For hosts that support DisplayPort 1.2: 3x FHD @ 60 Hz 2x QHD @ 60 Hz 1x 4K @ 60 Hz |
Networking | Supports 1 Gb of Ethernet |
Power to system | Up to 100W via USB-C®. Up to 75W on non HP machines. Separate AC power needed for HP ZBooks that require more than 100W power delivered via USB-C alt mode. |
Power to host (USB-C PD) | 5V , 9V, 10V, 12V, 15V, 20V all at 5A MAX |
