Display Name:

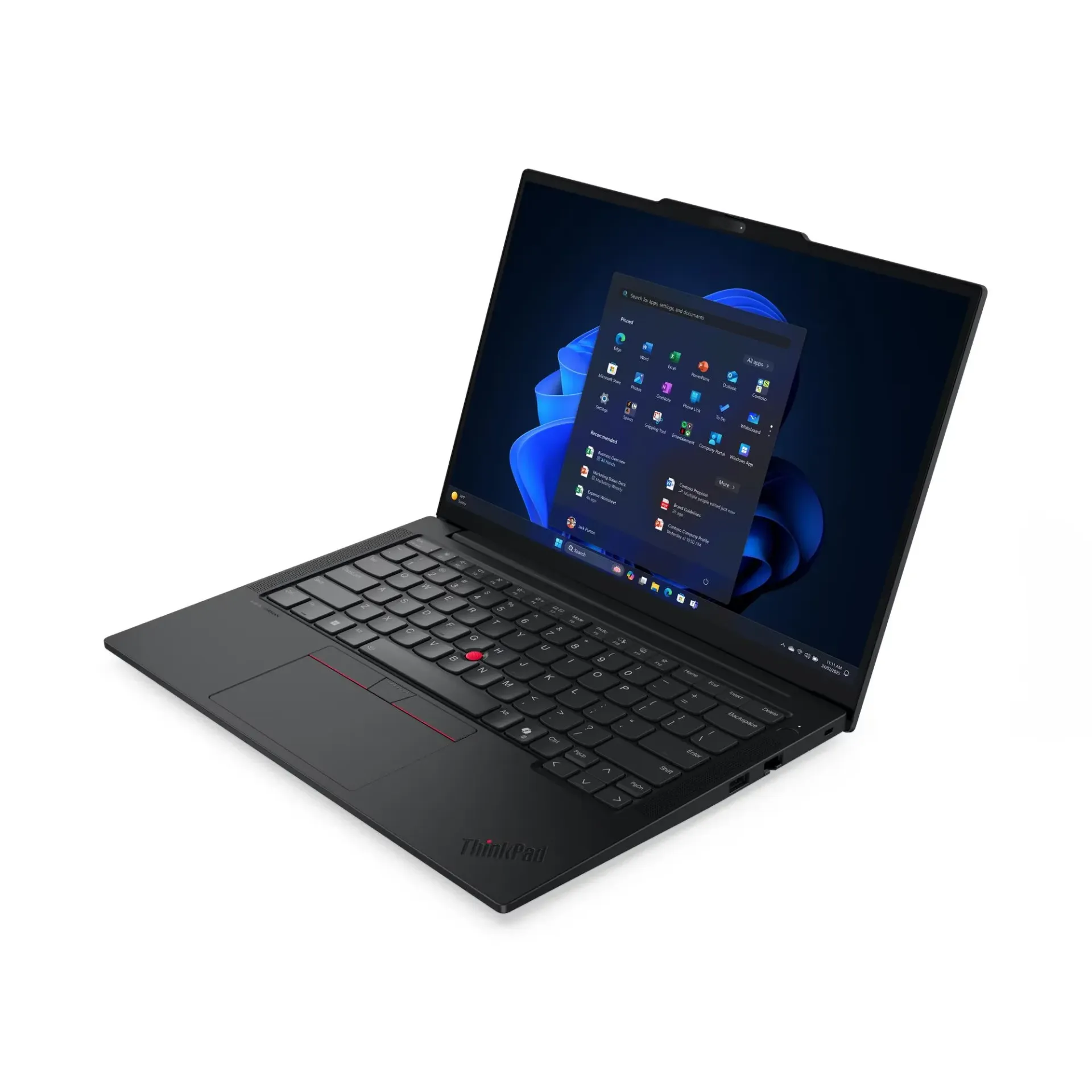

Lenovo ThinkPad E14 Gen 7 Laptop, 14" WUXGA IPS Display, Intel Core Ultra 7 255H Processor, 16GB RAM, 512GB SSD, Intel Graphics, Backlit Keyboard, Windows 11 pro, Black | 21SX0066GQ
Model Configuration
- Processor Intel® Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache
- AI PC Category AI PC
- NPU Integrated Intel® AI Boost, up to 13 TOPS
- Graphics Integrated Intel® Arc™ 140T GPU Functions as Intel Graphics
- Chipset Intel® SoC Platform
- Memory 1x 16GB SODIMM DDR5-5600
- Memory Slots Raptor Lake, Meteor Lake and Arrow Lake: two DDR5 SODIMM slots, dual-channel capable
- Max Memory Raptor Lake with H Series processors, Meteor Lake and Arrow Lake: up to 64GB DDR5-5600
- Storage 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0
- Storage Slot Raptor Lake, Meteor Lake and Arrow Lake: two M.2 slots • One M.2 2242 PCIe® 4.0 x4 slot • One M.2 2280 PCIe 4.0 x4 slot
- Max Storage Support Raptor Lake, Meteor Lake and Arrow Lake: up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB
- Card Reader No card reader
- Audio Chip High Definition (HD) Audio, Senary SN6147 codec
- Speakers Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN
- Microphone 2x, Array
- Camera FHD 1080p + IR Hybrid with Privacy Shutter
- Battery 48Wh
- Power Adapter 65W USB-C® (3-pin)
- Display 14" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz
- Touchscreen None
- Screen-to-Body Ratio 90%
- Pen Pen Not Supported
- Keyboard Backlit, English (EU)
- Dimensions (WxDxH) 313 x 220.3 x 10.1/15.25 (front/rear), 19.7 (maximum) mm; 12.32 x 8.67 x 0.40/0.60 (front/rear), 0.78 (maximum) inches
- Weight Starting at 1.34 kg (2.95 lbs)
- Case Color Black
- Case Material Aluminium (Top), Aluminium (Bottom)
- WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3
- WWAN WWAN Not Supported
- SIM Card None
- Ethernet 100/1000M (RJ-45)
- NFC None
- Standard Ports
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- Optional Ports (configured) 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.1 and Display
